Auto Feeding Four Heads Laser Cutting Machine For Toys

Payment Terms:	T/T,L/C
Place of Origin:	Hubei, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Production Capacity: 6500sets/year

Delivery Date: 5 to 15 business days

Laser Type: CO2

Packing: Standard wooden case packag...

Application: Laser Cutting

Brand Name: Golden Laser

Auto Feeding Four Heads Laser Cutting Machine For Toys

Advantage of Multi-heads laser cutter for toys industry

1.Auto-distributed distance : The distance between laser heads can automatically control by computer,it will increase your working efficiency.

2.Multifunction: you can use double heads working at the same time,also can use one head do the whole working table processing.

3.No waste even in the edge of your fabric.

4.Save your material to its limit: The nexting software will make the usage factor of fabric reach to above 90%.

5.With CCD Camera function,can cut the toys' hands,ears,eyes,feet,edge and Symmetrical parts at the same time.

6.Equiped with pedrail working table and selective auto feeding system optional which can make continuous feeding and cutting.

7.Online and offline control system for choice to bring you much convenience.

Applicable fields: Suitable for cutting plush materials and synthetic fabrics,such as plush toys,stuffed toys,plush slippers,,cloth toys,cloth slippers,craft slippers, automotive internal decorative and other similar soft materials.

Main technical parameters

Model	JGHY-16580LD IV		JGHY-180100LD
Laser cutting area	1650*800mm		1800*1000mm
Laser type	CO2 Hermetic and detached laser tube
Quality of laser heads	Four heads		Two heads
Laser power	80W of each laser head
Working table	Pedrail working table
Cutting speed	0-18000mm/min
Repeating location	0.1 mm
Moving system	Servo system		Single-side servo system
Power supply	AC220V, 50/60HZ
Format support	AI,BMP,PLT,DXF,DWG etc.
Standard collocation	Constant temperature chiller,Mini air compressor,two sets of 550w exhaust fans*2
Select collocation	CO2 hermetic and detached laser tube 65W/100W,High pressure blow magnetic valve and control board,auto feeding equipment	Protective cover,double-side servo system,co2 hermetic and detached laser tube 65W/100W,Auto feeding equipment

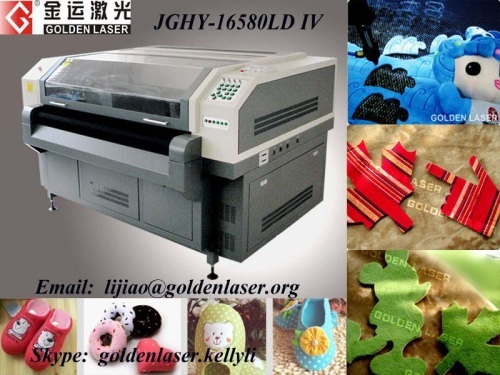

JGHY-16580LD IV Professional four-head movable laser cutting machine for toy fabric,Features:

1.Four laser head can calculate a most suitable way for processing according to different design and the width of the material, forming a automatical cutting system after working combine with feeding and rewinder units.

2. It is the most intelligent muti-head laser processing equipment at present, compared with traditional laser cutter, it can save more material, and improve the efficiency to more than 4 times

JGHY-180100LD Professional two-head movable laser cutting machine for toy fabrics,Features:

1.This machine is equipped with pedrail working table,movable double-head and auto-nesing system which guarantee the high speed ,high fabric utilization .With the help of auto-feeding system,it can realize continuously feeding cutting

2.With efficient and intelligent typesetting technology,,advanced copying technology,high performance spreading,loading and unloading system

3. suits for stuffed toys,craft slippers,plush materials and synthetic fabrics cutting and all kinds of automobile internal decoration,carpert,cloth,nap fabric,textile products and soft industrial materials.
