Automotive Upholstery Laser Cutter With Vacuum Conveyor Table

Price:	7000.0~20000.0 USD
Payment Terms:	T/T,L/C
Place of Origin:	Hubei, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Means of Transport: Ocean

Packing: Standard wooden case packag...

Application: Laser Cutting

Brand Name: Golden Laser

Laser Power: 2*80W

Cutting Speed: 0-36000mm/min

Moving system: Offline stepping motor cont...

Price: Be negotiable

Production Capacity: 6500sets/year

Delivery Date: 5 to 15 business days

Laser Type: CO2 Hermetic and detached g...

Machine model no.: JGHY-160100LD II

Working Table: Vacuum conveyor working tab...

Repeating Location Accuracy: ±0.5mm

After-sale service: Support

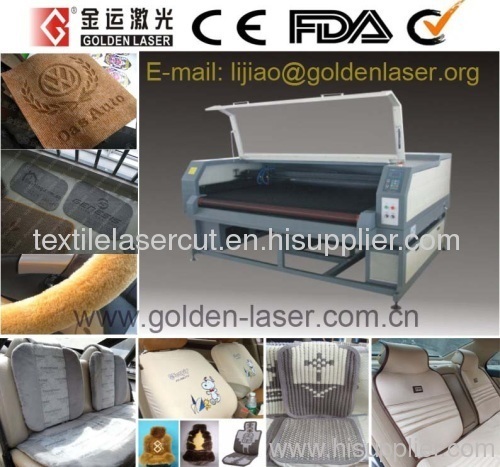

Automotive Upholstery Laser Cutter With Vacuum Conveyor Table

JGHY-160100LD II Double Heads Laser Cutting Machine

Mainly features for JGHY-160100LD II

1. The auto-distribute double laser heads.

lThis machine has two laser cutting head working together to increase working efficiency.

lThe distance between two heads can be changed by computer automatically.

lWith the auto-distribute function , it is not only bring you convenience, but also will save large quantity of your fabric every year.

2.Front and rear open design with vacuum conveyor working table.

lWorking table size of 1.6m*1.0m.You can cut the size of pattern from 1*1mm to 1600*1000 mm every time.

lSpecially suitable for cutting fabric in roll with high precision,when equipped with auto feeder system, this machine can feed and cut fabric within1.6m width continuously.

3. Precision cutting with low emission

With complete exhaust system, it can not only take away smell while processing, more importantly, but also the absorb makes the material stick to the table keeping flat and stable, lead to precisely processing result.

4.Imported spare parts.

American focus lens, Germany belt, Korea guide etc. The excellent parts make sure stable processing and long lifetime of equipment.

5,Software advantage

lWe Self-develop the software by ourselves .Once you come across trouble about its operating, we can help you in the first time.

lAnd you can enjoy the updating service of the software for free forever.

lMeanwhile the software support format is compatible with BMP, AI, PLT, DST, DXF, combined with CAD typeset designs and output in time.

6.Easily operation

5 inches LCD display screen and Offline control for easy and convenient operations.

Features for laser cutting

Laser machine adopts non-contact processing way for cutting textile and industrial fabric with heat treatment lead to high precision cutting with edge close up and no tool wear. No need mold and manual measure for cutting/punching any shapes due to software control.

Application field

Bolting Cloth,Geotextile Materials,Filter fabric, nonwoven, glass fiber and other flexible textile

Suitable for cutting a variety of textile and fabrics.

--Garment fabric, applique

--Carpet, Rug, Mat, Felt

-- Automotive Upholstery (Car Seat Covers, Car Mats, Car Cushions)

--Stuffed Toys, Plush Toys, Soft Toys

--Textile & Polyester

--Home textile, Furnishing Fabric, Upholster

Technical parameters

Laser tube	2*80W CO2 Hermetic and detached glass laser tube
Cutting area	1600mm×1000mm
Working table	Vacuum conveyor working table
No-load max speed	0-36000mm/min
Repeating location	±0.1mm
Moving system	Offline stepping motor control system
Power supply	AC220V±5% / 50HZ
Format support	AI,PLT,DXF,DST,BMP, etc
Standard collocation	550W up and down exhaust fan,mini air compressor
Select collocation	65W/100W CO2 glass laser tube,water chiller ,auto feeding equipment,servo system
